Malloc

struct malloc_chunk {

  INTERNAL_SIZE_T      mchunk_prev_size;  /* Size of previous chunk (if free).  */
  INTERNAL_SIZE_T      mchunk_size;       /* Size in bytes, including overhead. */

  struct malloc_chunk* fd;         /* double links -- used only if free. */
  struct malloc_chunk* bk;

  /* Only used for large blocks: pointer to next larger size.  */
  struct malloc_chunk* fd_nextsize; /* double links -- used only if free. */
  struct malloc_chunk* bk_nextsize;
};

• structure of chunk

#if IS_IN (libc)
void *
__libc_malloc (size_t bytes)
{
  mstate ar_ptr;
  void *victim;

  _Static_assert (PTRDIFF_MAX <= SIZE_MAX / 2,
                  "PTRDIFF_MAX is not more than half of SIZE_MAX");

  if (!__malloc_initialized)
    ptmalloc_init ();

• Assert mode is activated only in debug mode
• If malloc is not initialized, we ptmalloc_init() it.

#if USE_TCACHE
  /* int_free also calls request2size, be careful to not pad twice.  */
  size_t tbytes;
  if (!checked_request2size (bytes, &tbytes))
    {
      __set_errno (ENOMEM);
      return NULL;
    }
  size_t tc_idx = csize2tidx (tbytes);

  MAYBE_INIT_TCACHE ();

  DIAG_PUSH_NEEDS_COMMENT;
  if (tc_idx < mp_.tcache_bins
      && tcache
      && tcache->counts[tc_idx] > 0)
    {
      victim = tcache_get (tc_idx);
      return tag_new_usable (victim);
    }
  DIAG_POP_NEEDS_COMMENT;
#endif

• tbytes: tcache size of requested size
• MAYBE_INIT_TCACHE : only if there’s no tcache struct

1. If the requested size is within the size range that fits into the tcache
2. If the tcache structure has been created
3. If the requested size tcache is not empty -> Allocate using a chunk from the tcache.

  if (SINGLE_THREAD_P)
    {
      victim = tag_new_usable (_int_malloc (&main_arena, bytes));
      assert (!victim || chunk_is_mmapped (mem2chunk (victim)) ||
	      &main_arena == arena_for_chunk (mem2chunk (victim)));
      return victim;
    }

• malloc from main_arena

  arena_get (ar_ptr, bytes);

  victim = _int_malloc (ar_ptr, bytes);
  /* Retry with another arena only if we were able to find a usable arena
     before.  */
  if (!victim && ar_ptr != NULL)
    {
      LIBC_PROBE (memory_malloc_retry, 1, bytes);
      ar_ptr = arena_get_retry (ar_ptr, bytes);
      victim = _int_malloc (ar_ptr, bytes);
    }

If ar_ptr is present but the allocation to the victim has not occurred: attempt allocation to a different arena.

  if (ar_ptr != NULL)
    __libc_lock_unlock (ar_ptr->mutex);

  victim = tag_new_usable (victim);

  assert (!victim || chunk_is_mmapped (mem2chunk (victim)) ||
          ar_ptr == arena_for_chunk (mem2chunk (victim)));
  return victim;
}
libc_hidden_def (__libc_malloc)

Return the address allocated by _int_malloc.

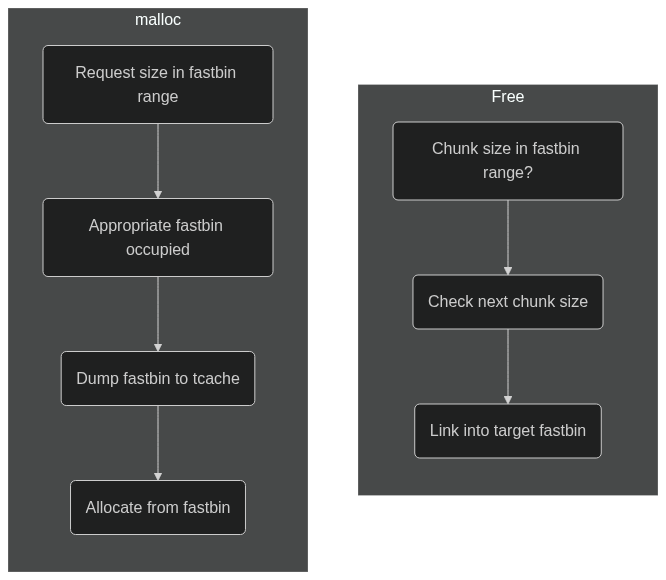

step 1. Is the request size in fastbin range?

static inline INTERNAL_SIZE_T
get_max_fast (void)
{
  /* Tell the GCC optimizers that global_max_fast is never larger
     than MAX_FAST_SIZE.  This avoids out-of-bounds array accesses in
     _int_malloc after constant propagation of the size parameter.
     (The code never executes because malloc preserves the
     global_max_fast invariant, but the optimizers may not recognize
     this.)  */
  if (global_max_fast > MAX_FAST_SIZE)
    __builtin_unreachable ();
  return global_max_fast;
}

A variable called global_max_fast, which is defined based on M_MXFAST, allows manipulation of the boundary of the fast bin.

step 2. Is the appropriate fastbin occupied?

 /*
     If the size qualifies as a fastbin, first check corresponding bin.
     This code is safe to execute even if av is not yet initialized, so we
     can try it without checking, which saves some time on this fast path.
   */

#define REMOVE_FB(fb, victim, pp)			\
  do							\
    {							\
      victim = pp;					\
      if (victim == NULL)				\
	break;						\
      pp = REVEAL_PTR (victim->fd);                                     \
      if (__glibc_unlikely (pp != NULL && misaligned_chunk (pp)))       \
	malloc_printerr ("malloc(): unaligned fastbin chunk detected"); \
    }							\
  while ((pp = catomic_compare_and_exchange_val_acq (fb, pp, victim)) \
	 != victim);					\

• remove a chunk from a fastbin linked list

  if ((unsigned long) (nb) <= (unsigned long) (get_max_fast ()))
    {
      idx = fastbin_index (nb);
      mfastbinptr *fb = &fastbin (av, idx);
      mchunkptr pp;
      victim = *fb;

      if (victim != NULL)
	{
	  if (__glibc_unlikely (misaligned_chunk (victim)))
	    malloc_printerr ("malloc(): unaligned fastbin chunk detected 2");

	  if (SINGLE_THREAD_P)
	    *fb = REVEAL_PTR (victim->fd);
	  else
	    REMOVE_FB (fb, pp, victim);

• Manage the requests going into a specific fastbin by using an index (idx).
• fb = Address of the fastbin list for the allocated size.
• victim = Address of the chunk present in the fastbin list.
• If theres a chunk in the fastbin list if (victim != NULL):

1. check if its misaligned
2. if only one thread update fastbin list
3. if else, *fb = victim pp=victim

	  if (__glibc_likely (victim != NULL))
	    {
	      size_t victim_idx = fastbin_index (chunksize (victim));
	      if (__builtin_expect (victim_idx != idx, 0))
		malloc_printerr ("malloc(): memory corruption (fast)");
	      check_remalloced_chunk (av, victim, nb);

• check size in which to malloc
• If the requested size and the size written at the allocation location differ, error

step 3. Dump fastbin to tcache & Allocate from fastbin

(cont)

#if USE_TCACHE
	      /* While we're here, if we see other chunks of the same size,
		 stash them in the tcache.  */
	      size_t tc_idx = csize2tidx (nb);
	      if (tcache && tc_idx < mp_.tcache_bins)
		{
		  mchunkptr tc_victim;

		  /* While bin not empty and tcache not full, copy chunks.  */
		  while (tcache->counts[tc_idx] < mp_.tcache_count
			 && (tc_victim = *fb) != NULL)
		    {
		      if (__glibc_unlikely (misaligned_chunk (tc_victim)))
			malloc_printerr ("malloc(): unaligned fastbin chunk detected 3");
		      if (SINGLE_THREAD_P)
			*fb = REVEAL_PTR (tc_victim->fd);
		      else
			{
			  REMOVE_FB (fb, pp, tc_victim);
			  if (__glibc_unlikely (tc_victim == NULL))
			    break;
			}
		      tcache_put (tc_victim, tc_idx);
		    }
		}
#endif

• if we have tcache struct and it fits tcache:
• attempt to move chunks from the fastbin list to tcache

	      void *p = chunk2mem (victim);
	      alloc_perturb (p, bytes);
	      return p;
	    }
	}
    }

• p: The address of the data area - subtracted the header from the chunk at where allocation is intended.
• change chunk to look like memory
• Return the address of the chunk after subtracting the header.

Free

step 1. is the chunk size in fastbin range?

 if ((unsigned long)(size) <= (unsigned long)(get_max_fast ())

#if TRIM_FASTBINS
      /*
	If TRIM_FASTBINS set, don't place chunks
	bordering top into fastbins
      */
      && (chunk_at_offset(p, size) != av->top)
#endif

	 ```

- checks if the size is within the limit defined by `get_max_fast()`
- if `TRIM_FASTBINS` is set, ensures that the chunk is not bordering the top of the arena (`av->top`).

step 2. check next chunk size

      ) {

    if (__builtin_expect (chunksize_nomask (chunk_at_offset (p, size))
			  <= CHUNK_HDR_SZ, 0)
	|| __builtin_expect (chunksize (chunk_at_offset (p, size))
			     >= av->system_mem, 0))
      {
	bool fail = true;
	/* We might not have a lock at this point and concurrent modifications
	   of system_mem might result in a false positive.  Redo the test after
	   getting the lock.  */
	if (!have_lock)
	  {
	    __libc_lock_lock (av->mutex);
	    fail = (chunksize_nomask (chunk_at_offset (p, size)) <= CHUNK_HDR_SZ
		    || chunksize (chunk_at_offset (p, size)) >= av->system_mem);
	    __libc_lock_unlock (av->mutex);
	  }

	if (fail)
	  malloc_printerr ("free(): invalid next size (fast)");
      }

• checks whether the size of the next chunk is valid.

step 3. link into target fastbin

    free_perturb (chunk2mem(p), size - CHUNK_HDR_SZ);

    atomic_store_relaxed (&av->have_fastchunks, true);
    unsigned int idx = fastbin_index(size);
    fb = &fastbin (av, idx);

    /* Atomically link P to its fastbin: P->FD = *FB; *FB = P;  */
    mchunkptr old = *fb, old2;

    if (SINGLE_THREAD_P)
      {
	/* Check that the top of the bin is not the record we are going to
	   add (i.e., double free).  */
	if (__builtin_expect (old == p, 0))
	  malloc_printerr ("double free or corruption (fasttop)");
	p->fd = PROTECT_PTR (&p->fd, old);
	*fb = p;
      }
    else
      do
	{
	  /* Check that the top of the bin is not the record we are going to
	     add (i.e., double free).  */
	  if (__builtin_expect (old == p, 0))
	    malloc_printerr ("double free or corruption (fasttop)");
	  old2 = old;
	  p->fd = PROTECT_PTR (&p->fd, old);
	}
      while ((old = catomic_compare_and_exchange_val_rel (fb, p, old2))
	     != old2);

    /* Check that size of fastbin chunk at the top is the same as
       size of the chunk that we are adding.  We can dereference OLD
       only if we have the lock, otherwise it might have already been
       allocated again.  */
    if (have_lock && old != NULL
	&& __builtin_expect (fastbin_index (chunksize (old)) != idx, 0))
      malloc_printerr ("invalid fastbin entry (free)");
  }

actual allocation to the fastbin.

• atomic_store_relaxed: Marks that the arena has fast chunks.
• Computes the fastbin index (idx) based on the size of the chunk.
• Obtains the fastbin list (fb) based on the index.
• In a single-threaded environment (SINGLE_THREAD_P), directly links the freed chunk to the fastbin.
• In a multi-threaded environment, uses an atomic compare-and-exchange loop to link the freed chunk to the fastbin.
• Checks for double-free and validates that the size of the fastbin chunk at the top matches the size of the newly added chunk. If there’s a mismatch, it triggers an error.

Consolidation

two conditions:

• allocates a big chunk that fastbins and small bins cannot meet will produces a call to malloc_consolidate() function.
• free a big chunk with size exceeds FASTBIN_CONSOLIDATION_THREDHOLD, which is 0x10000 in default.

Exploits

fastbin dup

bypass this part!

	  if (__glibc_likely (victim != NULL))
	    {
	      size_t victim_idx = fastbin_index (chunksize (victim));
	      if (__builtin_expect (victim_idx != idx, 0))
		malloc_printerr ("malloc(): memory corruption (fast)");
	      check_remalloced_chunk (av, victim, nb);

fastbin consolidate

bypass this part!

if (__builtin_expect (old == p, 0))
	  malloc_printerr ("double free or corruption (fasttop)");
	p->fd = PROTECT_PTR (&p->fd, old);
	*fb = p;
      }
